High-end Advertising Parking Lot Barrier Gate DC24V For Community Shopping Mall Car Parking Lots
1.Product Description;

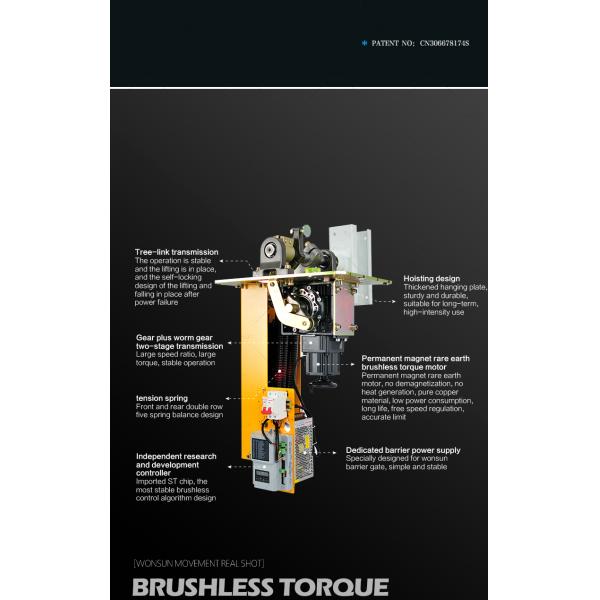

Thank you for purchasing the fourth generation brushless barrier gate. This product is a typical mechatronics product with the characteristics of small volume, low noise, high efficiency, wide speed regulation and small steady-state speed error. The fourth generation reducer is special for barrier gate,with optional multi speed ratio, stable operation, and the customized gear has higher transmission efficiency and high stability, which is more and more respected by the market. It adopts the latest mold design technology, die casting manufacturing technology, and brushless control speed regulation technology. The arm can be interchanged quickly. Non clutch design is more convenient to use, and the machine core adopts gear transmission that speed is fast.The arc-shaped curved crank three-link structure makes the arm work fast and stable. Convenient maintenance and long service life.
The advertising space is extensive, suitable for both residential and commercial properties as well as construction sites. It can be managed with closed supervision to maximize advertising benefits.
2.Data sheet
| Max boom length | 4 meters |
| Opening time | 3sec-8sec |
| Housing Material | Powder-coated steel/ Aluminum |
| MTBF | more than 5 million times |
| Working temperature | -35°C~+65°C |
| Power | 200W |
| Protection grade | IP44 |
| Driving unit | DC Advertsing motor |
3.Features
3.1 The running speed can be adjusted from 3s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
3.10 Connector for traffic light(AC220V,power less than 40W)
3.11 Offering dry contact signal for car parking system(COM,NC,NO)
3.12 Auto-delay when closing(adjustable)
3.13 RS485 or CAN network communication interface(no need to install module)
3.14 Counting interface
3.15 24V backup battery interface(Can be charged by using solar energy)( optional)
Our Services
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
