Fast Running Time Toll Barrier Gate Solar Power Supply 2 year Waranty
Technical Data
 | | DZ-138 barrier gate | V09T | | Max Boom Length and Diameter | 3000mm, Ф75mm | | Open/Close Time | 0.9sec,2.5sec,4.5sec | | Power Supply | 24/100/240VAC,50/60Hz | | Power Consumption | 100w | | Machine Case | Varnished 2.0mm steel plate | | Machine Case Size(W*D*H) | 342*312*959mm | | Net Weight | 42.6kg | | Operating Temperature Range℃ | -45℃~+85℃ | | Driving Method | Servo motor | | Protection System(IP) | 54 | | Insulation Class | F | | Relative Humidity | ≤90% | | Motor No-load Speed | 3000r/min | | Remote Control Distance | ≤100m (open, sunny weather) | | Output Torque | 0.86N.M*140=120N.M | | Running Noise＜ | 45dB | | Surface Treatment | Outdoor metal powder electrostatic spraying | |
Functions
1. Speed can be adjusted.
2. Barrier gate up &down signal relay switch output.
3. Barrier gate running state: OK signal output indicating that the gate is working properly.
5. R&G Traffic light relay switch signal output.
6. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
7. Count mode interface.
8. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
9. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle and the barrier gate.
10. Delay closed selection function.
11. High-sensitivity arm auto reverse function (intensity can be adjusted).
12. Parking system interface.
13.RS485 or RS232 network communication control up &down interface (no need to install communication module)
14. Anti-collision alarm signal interface.
15. Adjustable speed port (from 0.9s to 6 s)
16. High-strength precision cast steel, industry moving parts beyond the industry quality
Operation time and boom length
| Boom Type(meter) | Operation Time(seconds) |
| Fast speed boom≤2.5 | 0.6 |
| Fast speed boom≤3 | 0.9 |
| Common straight boom≤4.5 | 2.5 |
| Common straight boom≤6 | 4.5 |
| 80*45mm 90°folding boom≤3 | 1 |
| 80*45mm 90°folding boom≤3.5 | 2.5 |
| 80*45mm 90°folding boom≤5 | 5 |
| 80*45mm 180°folding boom≤3 | 1 |
| 80*45mm 180°folding boom≤4 | 2.5 |
| 80*45mm 180°folding boom≤5 | 4.5 |
| 100*45mm 2 fence boom≤3.5 | 2.5 |
| 100*45mm 2 fence boom≤5 | 6 |
| 100*45mm 3 fence boom≤3 | 3 |
| 100*45mm 3 fence boom≤4 | 6 |

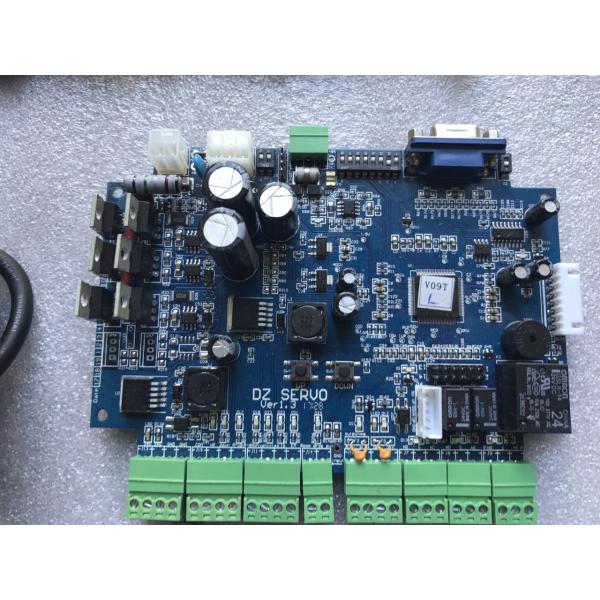

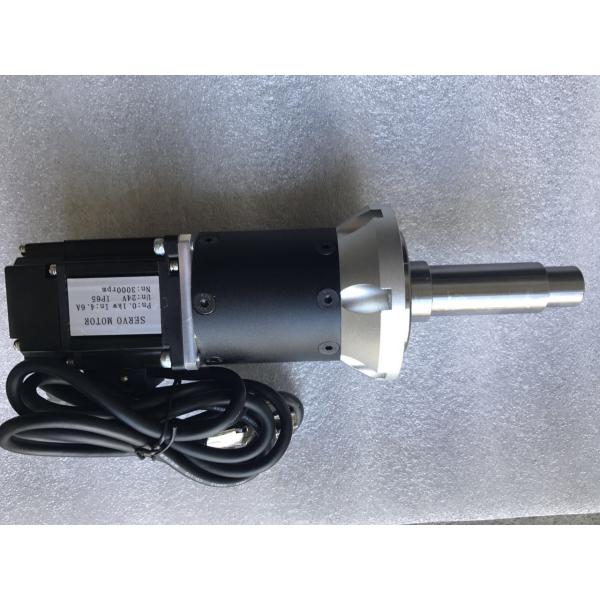

| Power Supply | ServoMotor | Control board | Speed adjustor |
 |  |  |  |
Packing list:
| Title | Specification | Qty | Unit | Note |
| Barrier gate boom | | 1 | Piece | |
| Machine case press board | | 2 | piece | For fixing case |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | | 1 | piece | Optional part |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | | 2 | unit | |
| Balance spring | | 1 | unit | For spare usage |
| Remote controller | | 2 | unit | |
| Machine control | | 1 | unit | Optional |
| Instruction | | 1 | piece | |
Service for free:
1. Two year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed
requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
